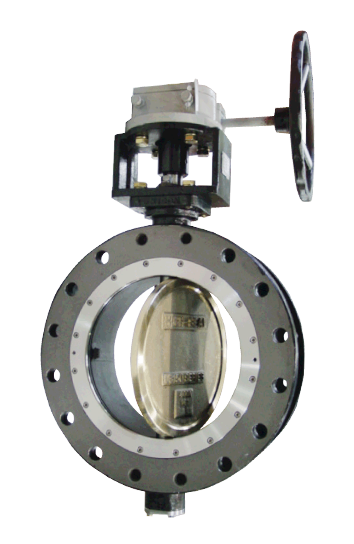

Rubber Lining Valve
Rubber lining valve that is double flanged butterfly valve, has an eccentric structure enabling smooth operation and tight shut-off at any condition.
Rubber lining is applicable to the inner body for anti-corrosion duty to prevent rust and corrosion on the body.
Basically Rubber lining valve has a ring seat made of rubber, yet, as an option, it has a Teflon or metal seat as per working condition.
| Design | ASME B16.34 / API std 609 Category B |
|---|---|
| Rating | ASME B16.5 Cl. 150 ASME B16.1 Cl. 125 AWWA C 504 |
| Size | DN150(6”) to DN2850 (114”) |
| Connection Type | Double Flanged |
| Temperature Range | UP to 80℃ |
| Main Material | Body : WCB, B148-C95800 etc. Disc : B148-C95800 etc. Shaft : B150-C63000 etc. Seat : Natural Rubber, EPDM etc. |
| Operator |
Manual Hand lever / Manual Worm Gear Pneumatic Actuator Electric Actuator |
| Application |
General & Petro Chemical Refinery Oil Production (On / Off Shore) Steel and Iron Mill Shipbuilding Water / Sewage Power plant Seawater |
| Option |
Internal Rubber Lining Anti-static device Manual operator with Locking device Stem extension Special Material as per applications |
